3/4 Male Steel To Male Copper End Treaded Union
Prevents the deterioration of the pipe connections and stray induced electrical currents
Unions available in: FIP x SWT, MIP x SWT, FIP x BPT, Flange
Hold both pipes together, preventing leaking and other kinds of damage.
Product Introduction
● Prevents the deterioration of the pipe connections and stray induced electrical currents
● Unions available in: FIP x SWT, MIP x SWT, FIP x BPT, Flange
● Hold both pipes together, preventing leaking and other kinds of damage.
● To connect pipes of different types together
● Pressure/temperature ratings: 180F @ 250 psi
No. | Description | Material |
1 | Union nut | Steel/zinc plated |
2 | Insulator | Platic |
3 | Tailpiece | Lead free brass |
4 | Gasket | EPDM |
5 | Union body | Steel/zinc plated |
Product Parameter (Specification)
Male Iron Pipe (+0.1~0.2mm) | |||||||||
Size | A | B | C | D | E | F | H | G | K |
1/2 | 47.5 | 10.5 | 29 | 13.4 | 25.5 | 19.1 | 12.4 | 0.6 | 15.5 |
3/4 | 51.5 | 11.5 | 34 | 18.8 | 31.5 | 24.5 | 15.5 | 0.6 | 21 |
1 | 59.5 | 12 | 40 | 22 | 38.5 | 30.6 | 18.5 | 0.6 | 27.3 |
1-1/4 | 67 | 13 | 48.8 | 31.6 | 46 | 40.5 | 19 | 0.8 | 33.8 |
1-1/2 | 69 | 16 | 57.4 | 37.4 | 54 | 46.6 | 20 | 0.8 | 39.8 |
2 | 71.5 | 17 | 72 | 48 | 65.7 | 58.6 | 21 | 0.8 | 51.4 |
Male Copper End (+0.1~0.2mm) | ||||||||
Item No. | Size | A | B | C | D | E | F | G |
CLMM014-1 | 1/2 | 28.5 | 10 | 2.5 | 14 | 27 | 21 | 20.8 |
CLMM014-2 | 3/4 | 30 | 12 | 2.5 | 18.3 | 31.5 | 26.4 | 25.5 |
CLMM014-3 | 1 | 32.5 | 13 | 2.5 | 25 | 38 | 32.7 | 31.8 |
CLMM014-4 | 1-1/4 | 34.8 | 13 | 2.7 | 31.5 | 52.4 | 45.7 | 40.5 |
CLMM014-5 | 1-1/2 | 36 | 13 | 3 | 36.2 | 69 | 61 | 46.6 |
Products Details

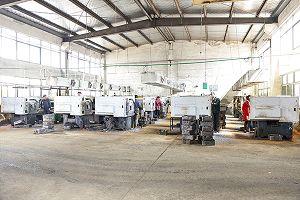

Production Procedure
Product Qualification
Factory Review

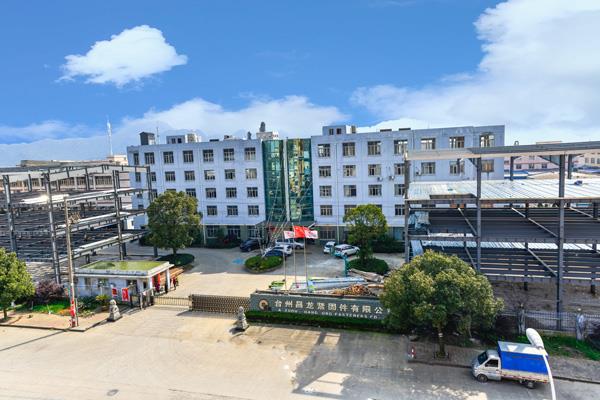

Taizhou Changlong Fasteners Co. Ltd, located in Taizhou City Zhejiang Provice, is established in the year 1995. With more than 20 years development, now we become a medium-sized factory from a small works shop.
Our Tenet: market-oriented, Quality is the life, integrity and development.
Our Principle: Strength makes famous brand and quality wins high credit.
To do business with integrity, To achieve the best results.
Deliver, Shipping and Serving
● Packing Details: 1pc/polybag+10pcs/inner+Carton or follow customer requirements.
● Delivery Details: 25-30 days after get the L/C or TT copy, we can accept fast delivery if customer is really in urgent.
● Shippment: by sea, by air or by courier like DHL, TNT and Fedex etc.
FAQ
Q1: How long can I expect to get the sample?
Samples will be free of charge if we have stock, and can send to you immediately.
If we have to make the new samples for you, it takes about 5 days.
Q2: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within 30 days.
Q3: What is your terms of delivery?
We accept EXW, FOB, CIF, DDU etc. You can choose the one which is the most convenient or cost effective for you.
Q4: Where is your company?
We are located in Taizhou, Zhejiang Province, very convenient for shipping.
Q5: What are your main products?
Dielectric union and rock bolt accessories, like spherical nut, hex nut, spherical washer etc .
