Dielectric Union Pipe Fitting for High Temperature Applications
Surface: zinc plated
Threaded end: FIP (Female Threaded)
Sweat End (Tail Piece): MT (male Copper Sweat)
Usage: used to connect brass pipe with iron pipe
Product Introduction
● Surface: zinc plated
● Threaded end: FIP (Female Threaded)
● Sweat End (Tail Piece): MT (male Copper Sweat)
● Usage: used to connect brass pipe with iron pipe
● Maximum Pressure: 250psi
No. | Description | Material |
1 | Union nut | Steel/zinc plated |
2 | Insulator | Platic |
3 | Tailpiece | Lead free brass |
4 | Gasket | EPDM |
5 | Union body | Steel/zinc plated |
Product Parameter (Specification)
Male Iron Pipe (+0.1~0.2mm) | |||||||||
Size | A | B | C | D | E | F | H | G | K |
1/2 | 47.5 | 10.5 | 29 | 13.4 | 25.5 | 19.1 | 12.4 | 0.6 | 15.5 |
3/4 | 51.5 | 11.5 | 34 | 18.8 | 31.5 | 24.5 | 15.5 | 0.6 | 21 |
1 | 59.5 | 12 | 40 | 22 | 38.5 | 30.6 | 18.5 | 0.6 | 27.3 |
1-1/4 | 67 | 13 | 48.8 | 31.6 | 46 | 40.5 | 19 | 0.8 | 33.8 |
1-1/2 | 69 | 16 | 57.4 | 37.4 | 54 | 46.6 | 20 | 0.8 | 39.8 |
2 | 71.5 | 17 | 72 | 48 | 65.7 | 58.6 | 21 | 0.8 | 51.4 |
Male Copper End (+0.1~0.2mm) | ||||||||
Item No. | Size | A | B | C | D | E | F | G |
CLMM014-1 | 1/2 | 28.5 | 10 | 2.5 | 14 | 27 | 21 | 20.8 |
CLMM014-2 | 3/4 | 30 | 12 | 2.5 | 18.3 | 31.5 | 26.4 | 25.5 |
CLMM014-3 | 1 | 32.5 | 13 | 2.5 | 25 | 38 | 32.7 | 31.8 |
CLMM014-4 | 1-1/4 | 34.8 | 13 | 2.7 | 31.5 | 52.4 | 45.7 | 40.5 |
CLMM014-5 | 1-1/2 | 36 | 13 | 3 | 36.2 | 69 | 61 | 46.6 |
Products Details
Production Procedure
Product Qualification
● ISO9001 certified
● Lead free certification
● UPC qualified
Our Market
Our main market is South America, like Chile, Peru, America, and Europe and Australia etc. Our main customers are DSI, JENNMAR, FERO, CELLO, BMI and Zurn etc. Now our annual sales amount has reach USD 10000000.

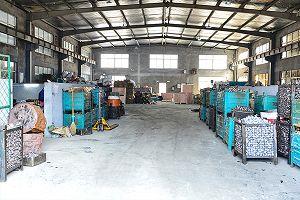

Factory Review
Our factory covers about 15000sqm, which the floor space is about 10000sqm. We have have hundreds of employees, including 16 managers and engineers. Our fixed assets valued about RMB15000000. The tenet of the company: trive for survival on the basis if quality, take the market on the basis of reputation, welcome the customer on the basis of good service and develop in the basis of efforts.
Deliver, Shipping and Serving
● Packing Details: 1pc/polybag+10pcs/inner+Carton or follow customer requirements.
● Delivery Details: usually about 25 days after receiving the deposite. Fast delivery requirements is acceptable.
● Shippment: by sea, by air or by courier like DHL, TNT and Fedex etc.
FAQ
Q1: When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q2: Can you do the design for us?
Yes. We have a professional team having rich experience on products designs and package design. Just tell us your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3: What kind of files do you accept ?
AI, PDF, high resolution JPG, Words.
