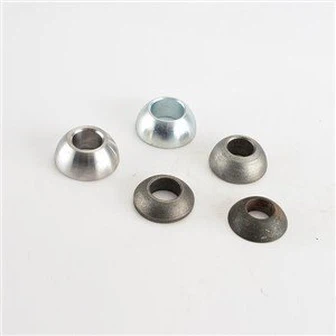

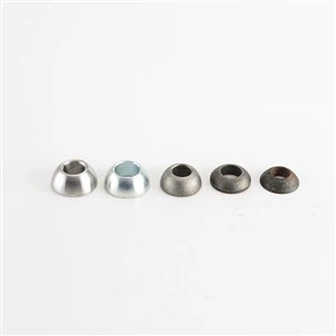

Steel Spherical Washer
Spherical washers, also called self-aligning washers, have convex-shaped radiuses, and are used tocompensate when a bolt or screw does not have an exact perpendicular position with a surface.
Product Introduction
Product Introduction
Spherical washers, also called self-aligning washers, have convex-shaped radiuses, and are used tocompensate when a bolt or screw does not have an exact perpendicular position with a surface. The two-piece unit has male and female components that provide a swivel action to allow positioning.
Product Parameter (Specification)
Item No. | # | d | DC | H | |||
max | min | max | min | max | min | ||
CLDS020-1 | 6 | 6.6 | 6.4 | 12.5 | 12.07 | 3 | 2.75 |
CLDS020-2 | 8 | 8.6 | 8.4 | 17 | 16.57 | 4 | 3.7 |
CLDS020-3 | 10 | 10.74 | 10.5 | 21 | 20.48 | 4 | 3.7 |
CLDS020-4 | 12 | 13.24 | 13 | 24 | 23.48 | 5 | 4.7 |
CLDS020-5 | 16 | 17.24 | 17 | 30 | 29.48 | 6 | 5.7 |
CLDS020-6 | 20 | 21.28 | 21 | 37 | 36.38 | 6.6 | 6.24 |
CLDS020-7 | 24 | 25.28 | 25 | 44 | 43.38 | 9.6 | 9.24 |
CLDS020-8 | 30 | 31.34 | 31 | 56 | 55.26 | 9.8 | 9.44 |
CLDS020-9 | 36 | 37.34 | 37 | 66 | 65.26 | 12 | 11.57 |
CLDS020-10 | 42 | 43.34 | 43 | 78 | 77.26 | 16 | 15.57 |
Products Details
A spherical washer consists of two pieces and features both a male and a female half. Choose the sizeyou need to fit the bolt you have. Steel, stainless steel and low carbon steel spherical washers fromGrainger offer your choice of plain or black oxide finish.
Product Qualification
● The factory has 20 years manufacturing and 15 years exporting experience, professional engineers and workers, the best machines, strict quality control system from the row material.
Production Procedure

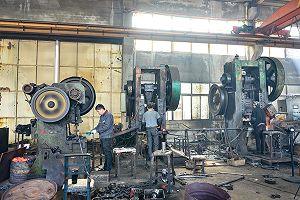

Factory Review
Our factory covers about 15000sqm, which the floor space is about 10000sqm. We have have hundreds of employees, including 16 managers and engineers. Our fixed assets valued about RMB15000000. The tenet of the company: trive for survival on the basis if quality, take the market on the basis of reputation, welcome the customer on the basis of good service and develop in the basis of efforts.
Deliver, Shipping and Serving
● Packing Details: cartons
● Lead-time: 25days or if we have the goods in our stock, we can deliver in a week.
● Shipment: From Ningbo /shanghai port by sea or by air.
FAQ
Q1: What are your main products?
Dielectric union and rock bolt accessories, like spherical nut, hex nut, spherical washer etc.
Q2: Packaging & Shipping:
Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.
Q3: How about the MOQ?
3000PCS
Q4: Where is your company?
We are located in Taizhou, Zhejiang Province, very convenient for shipping.
