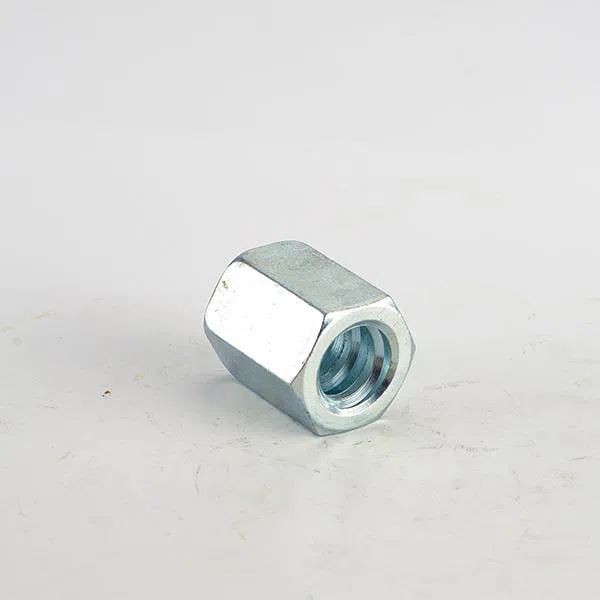

Finished Hex Nuts 1045 Steel

Name: Finished Hex Nuts 1045 Steel
Brand: Changlong
SKU: 193032209

The performance of the forged products are better than casting products.
General material is1045, zinc plated finish, T thread, we could do as your request.

Send Inquiry

Product Introduction

Product Introduction

● The performance of the forged products are better than casting products.

● General material is1045, zinc plated finish, T thread, we could do as your request.

● Steel hex nuts are widely used in the mining ground support, tunneling ground support, construction, form works, etc.

● Hex nuts is better than square nuts, better for wrench.

Product Parameter (Specification)

Item No.	Size			F		L
Item No.	#	inch	mm	inch	mm	inch	mm
CLHN017-1	6	3/4”	19	1.5	38.1	1.69	43
CLHN017-2	7	7/8”	22	1.5	38.1	1.77	45
CLHN017-3	8	1”	2225	1.75	44.5	1.97	50
CLHN017-4	9	1-1/8”	28	2	50.8	2.36	60
CLHN017-5	10	1-1/4”	32	2.25	57.2	2.56	65
CLHN017-6	11	1-3/8”	36	2.5	63.5	2.87	73
CLHN017-7	14	1-3/4”	43	3	76.2	3.7	94
CLHN017-8	18	2-1/4”	57	3.5	90	4.33	110
CLHN017-9	20	2-1/2”	63.5	4	100	4.53	115
CLHN017-10	24	3”	75	4	100	5.71	145

Products Details

The nut is attached to the threaded end of the bolt with a dome ball washer and is used to secure the plate during the installation of rock bolts. And it is better for wrench than square nuts.

image005(001) image004(001)

Product Qualification

● The factory has professional engineers and workers, the best machines, strict quality control system from the raw material.

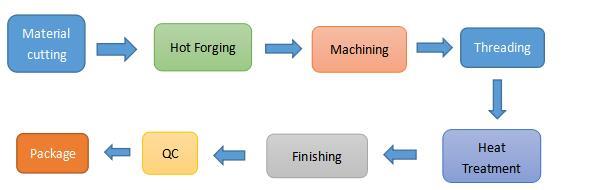

Production Procedure

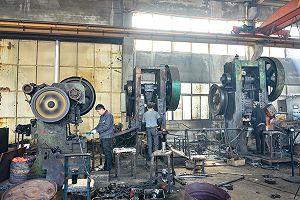

Factory Review

Taizhou Changlong Fasteners Co.,Ltd is a factory good at manufacturing rock bolt accessories such as steel dome nuts, hex nuts, flange nuts, square nuts, hanger nuts, dome ball washer, pull collar, friction bolt rings, scaling bars and coupler etc.
