Lead Free Dielectric Unions - FIP Thread To Solder Connections
Maximum Pressure: 250psi
Material: Steel & copper
Surface: zinc plated
Feature: a female iron pipe thread to solder connection
Product Introduction
Maximum Pressure: 250psi
Material: Steel & copper
Surface: zinc plated
Feature: a female iron pipe thread to solder connection
No. | Description | Material |
1 | Union nut | Steel/zinc plated |
2 | Insulator | Platic |
3 | Tailpiece | Lead free brass |
4 | Gasket | EPDM |
5 | Union body | Steel/zinc plated |
Product Parameter (Specification)
Item No. | Size | A | B | C | D | E |
CLFC007-1 | 1/2” | 1.42 | 1 | 0.77 | 1.87 | 0.83 |
CLFC007-2 | 3/4 x 1/2” | 1.62 | 1.26 | 0.77 | 1.87 | 0.83 |
CLFC007-3 | 3/4” | 1.62 | 1.26 | 0.77 | 2.11 | 1.06 |
CLFC007-4 | 1” | 1.89 | 1.5 | 0.87 | 2.32 | 1.3 |
CLFC007-5 | 1-1/4” | 2.25 | 1.81 | 0.91 | 2.58 | 1.58 |
CLFC007-6 | 1-1/2” | 2.76 | 2.13 | 0.95 | 2.8 | 1.81 |
CLFC007-7 | 2” | 3.51 | 2.6 | 1.06 | 3.11 | 2.36 |
Products Details
Product Qualification
● Taizhou changlong factory passed ISO9001
● Our dielectric union is lead free and we have got Lead Free Certification
● Comply with the applicable sections of the latest edition of the Uniform Plumbing Code and the International Plumbing Code
● Manufactured in compliance with ASSE 1079-05
Factory Review

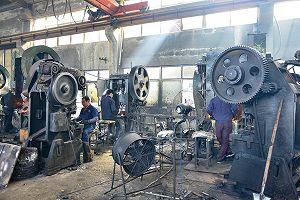

For production machine, we have 10 forging and pressing machines, 30 numerical control machines and 5 threading machines.
For detection equipment, we have 3 hardness detection machine.
All the machines and equipment are advance and completed.
Deliver, Shipping and Serving
● Packing Details: 1pc/polybag+Carton or according to customer requirements
● Delivery Time: about 30 days after received your payment. If we have stock, we can deliver within 7 days.
● Delivery Term: FOB or CIF or CFR/CNF
● Shippment: mainly by sea, or by air if required
FAQ
Q 1: Can I get samples?
Yes, certainly. Free samples (if we have in stock) with freight collect.
We usually send samples by FEDEX, UPS, TNT or DHL.
Q2: Could we mix different products for container load?
A6. Yes. We can help customer to mix different products as you want, but pls note each of item qty should not be less than MOQ. Thank you.
Q3: Why choose us?
1. We are China leading dielectric union manufacturer.
2. 100% QC inspection before shipment.
3. Best quality & best service with competitive price.
