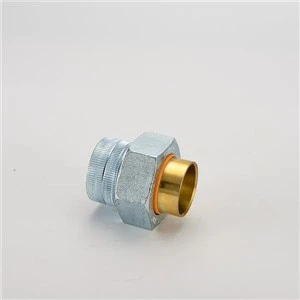

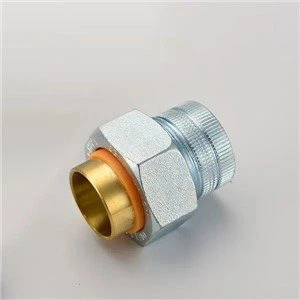

Female Steel Threaded To Copper Dielectric Union

SPECS: This union has 2-inch FIP x 2-inch solder connection
PRESSURE: The maximum working pressure of the union is 250 PSI, rated to 180-Degrees F
MATERIAL: IPS Connection and nut are both made of steel. Solder connection is Brass and Gasket is made of EMDP with a plastic insert

Send Inquiry

Product Introduction

● SPECS: This union has 2-inch FIP x 2-inch solder connection

● PRESSURE: The maximum working pressure of the union is 250 PSI, rated to 180-Degrees F

● MATERIAL: IPS Connection and nut are both made of steel. Solder connection is Brass and Gasket is made of EMDP with a plastic insert

● USAGE: Used to transition between steel pipe and copper pipe. Works with copper, brass, and steel

● LEAD FREE: Complies with lead free plumbing law

Product Introduction

No.	Description	Material
1	Union nut	Steel/zinc plated
2	Insulator	Platic
3	Tailpiece	Lead free brass
4	Gasket	EPDM
5	Union body	Steel/zinc plated

Product Parameter (Specification)

Item No.	Size	A	B	C	D	E
CLFC007-1	1/2”	1.42	1	0.77	1.87	0.83
CLFC007-2	3/4 x 1/2”	1.62	1.26	0.77	1.87	0.83
CLFC007-3	3/4”	1.62	1.26	0.77	2.11	1.06
CLFC007-4	1”	1.89	1.5	0.87	2.32	1.3
CLFC007-5	1-1/4”	2.25	1.81	0.91	2.58	1.58
CLFC007-6	1-1/2”	2.76	2.13	0.95	2.8	1.81
CLFC007-7	2”	3.51	2.6	1.06	3.11	2.36

Products Details

image005(001) image007(001)

image009(001) image011(001)

image013(001) image015(001)

Qualification

● ISO9001 certified

● Lead free certification

● UPC qualified
