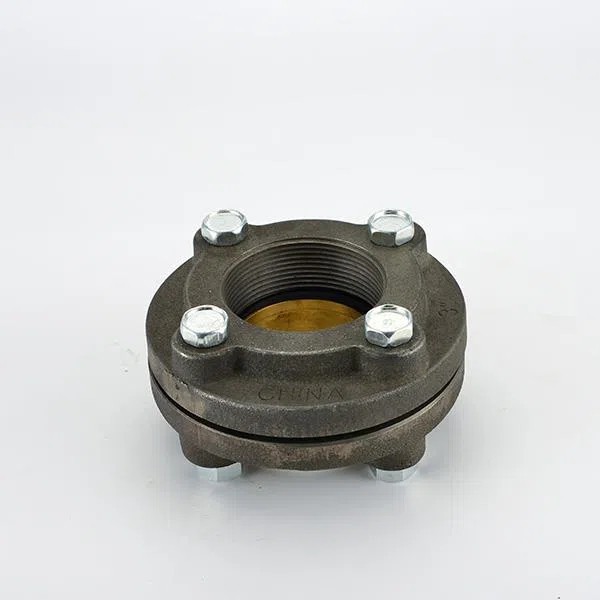

Flanged Union FIP X Sweat Pipe Fitting
Fitting Schedule/Class: Class 125
Pipe Size (Fittings): 2-1/2"
Fitting Connection Type: Flange
Saturated Steam Pressure: 125 psi
Product Introduction
● Fitting Schedule/Class: Class 125
● Pipe Size (Fittings): 2-1/2"
● Fitting Connection Type: Flange
● Saturated Steam Pressure: 125 psi
● Pipe Fitting Material: Cast Iron
● Item: Flange Union
● Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
Product Parameter (Specification)
No. | Part | Material |
1 | Bolts | Zinc Coated Steel |
2 | Nuts | Zinc Coated Steel |
3 | Flange | Cast Iron W/Galvanized |
4 | Gasket | EPDM |
5 | Flange | Cast Iron W/Galvanized |
6 | Insulator | Plastic |
7 | Solder connection | Lead Free Brass |
Item No. | Size | A | B |
CLFU015-1 | 2-1/2” | 1.62 | 1.02 |
CLFU015-2 | 3” | 1.89 | 1.26 |
Products Details
Production Procedure
Factory Review
Our factory covers about 15000sqm, which the floor space is about 10000sqm. We have have hundreds of employees, including 16 managers and engineers. Our fixed assets valued about RMB15000000. The tenet of the company: trive for survival on the basis if quality, take the market on the basis of reputation, welcome the customer on the basis of good service and develop in the basis of efforts.
Deliver, Shipping and Serving
● Packing Details: 1pc/polybag+Carton or according to customer requirements.
● Delivery Time: about 30 days after received your payment.
If we have stock, we can deliver within 7 days.
● Shippment: usually by sea, if customer is in urgent need of the good, we can also deliver by air or by express like DHL, UPS Fedex etc
FAQ
Q1: How can I get a sample to check your quality?
After price confirmation, we can send you samples free of charge with freight collect if we have stock. If you have to make the samples, samples cost will be charged according to the samples. But sample charges will be returned after the order.
Q2: How long can I expect to get the sample?
We can send the samples in we have stock, if no stock, it takes about 3-5 days to make it.
Q3: What is your terms of delivery?
We accept EXW, FOB, CIF, DDU etc. You can choose the one which is the most convenient or cost effective for you.
