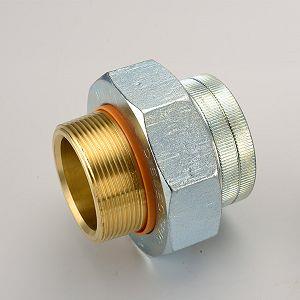

Threaded Pipe Union FIPxFIP
Threaded end: FIP (Female Threaded)
Sweat End (Tail Piece): MT (male Copper Sweat)
Pressure/temperature ratings: 180F @ 250 psi
Product Introduction
● Threaded end: FIP (Female Threaded)
● Sweat End (Tail Piece): MT (male Copper Sweat)
● Pressure/temperature ratings: 180F @ 250 psi
● Materials of construction: Zinc Plated Steel Unions and Threaded Insert, EPDM O-ring, Plastic Insert and Lead-Free Brass Sweat Adapter.

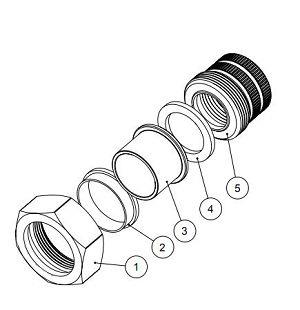

No. | Description | Material |
1 | Union nut | Steel/zinc plated |
2 | Insulator | Platic |
3 | Tailpiece | Lead free brass |
4 | Gasket | EPDM |
5 | Union body | Steel/zinc plated |
Product Parameter (Specification)
Female Iron Pip (+0.1~0.2mm) | ||||||||
Size | A | B | C | D | E | F | H | L |
1/2 | 13.5 | 21.5 | 33.7 | 18.9 | 26 | 11.5 | 27 | 22.5 |
3/4 | 19.5 | 27.5 | 39.7 | 24.5 | 32 | 12 | 30 | 25 |
1 | 24.5 | 33.8 | 47.3 | 30.6 | 39 | 12.5 | 33 | 29 |
1-1/4 | 31.6 | 39.8 | 55.9 | 39.6 | 49 | 14 | 35 | 30 |
1-1/2 | 37.4 | 51.4 | 70.7 | 45.3 | 55 | 16 | 36 | 31 |
2 | 51 | 63.5 | 87.2 | 57.5 | 70 | 17 | 38 | 32.5 |
Male Copper End (+0.1~0.2mm) | ||||||||
Item No. | Size | A | B | C | D | E | F | G |
CLFM012-1 | 1/2 | 28.5 | 10 | 2.5 | 14 | 27 | 21 | 20.8 |
CLFM012-2 | 3/4 | 30 | 12 | 2.5 | 18.3 | 31.5 | 26.4 | 25.5 |
CLFM012-3 | 1 | 32.5 | 13 | 2.5 | 25 | 38 | 32.7 | 31.8 |
CLFM012-4 | 1-1/4 | 34.8 | 13 | 2.7 | 31.5 | 52.4 | 45.7 | 40.5 |
CLFM012-5 | 1-1/2 | 36 | 13 | 3 | 36.2 | 69 | 61 | 46.6 |
CLFM012-6 | 2 | 38 | 15 | 3 | 47.5 | 69 | 62 | 58.6 |

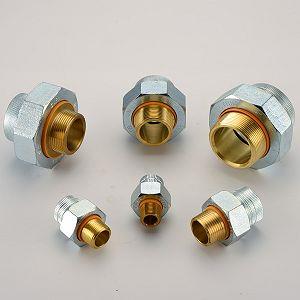

Products Details

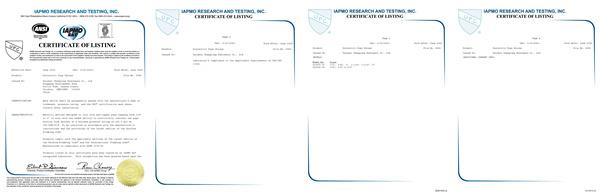

Product Qualification
● We are ISO9001 qualified
● Complies with Lead Plumbing Law
● Verified with weighted average lead content less than 0.25%
● Solder and Flux lead content less than 0.2%
Our Products
The factory is specialized in producing a variety of high intensity particular fasteners. It mainly produces Dielectric Pipe Unions, pipe clamps and non-standard, irregular high intensity particular bolts and nuts.
The following are our 2 main products range:
1. Lead free plumbing products, dielectric union: FIPXC, MIPXC, FIPXFBP, MIPXFemal solder, FIPX Copper male, MIF x Sweat male, Black FIPXBlack FIP, Flange etc.
There are mainly 4 kind of surface treatment: black, zinc plate, hot-dip galvanized and plain.
2. Rock bolt accessories: dome nuts, hex nuts, eye nuts, flange nuts, washer and coupler etc.
Factory Review

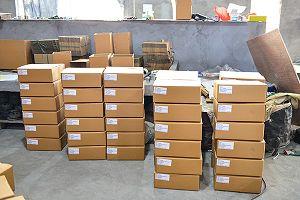

Deliver, Shipping and Serving
1pc/poly bag+Carton or according to customer requirements.
Delivery Details : usually about 25 days after receiving the deposit.
Fast delivery requirements is acceptable.
Shipment: usually by sea, if customer is in urgent need of the good, we can also deliver by air or by express like DHL, UPS FedEx etc.
FAQ
Q1: Packaging & Shipping?
Dielectric union: master carton+manufactured pallet.
Rock bolt accessories: manufactured pallet.
Q2: What is your delivery time?
About 30 days after the deposit or receiving the L/C.
Q3: How long can I expect to get the sample?
We can send the samples immediately if we have in stock.
It takes about 5-7 days to make the samples.
Q4: What is your terms of delivery?
We accept EXW, FOB, CIF, DDU etc.
You can choose the one which is the most convenient or cost effective for you.
