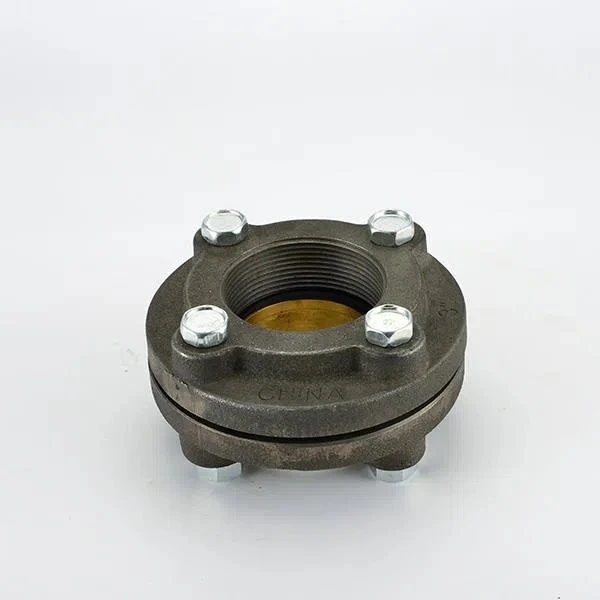

Flange Dielectric Union 2 Pipe Size
Item: Flange Union
Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
Standards: UL: FM Approved: ASME B16.4
Temp. Range: -20 Degrees to 150 Degrees F
Product Introduction
● Item: Flange Union
● Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
● Standards: UL: FM Approved: ASME B16.4
● Temp. Range: -20 Degrees to 150 Degrees F
● Basic Fitting Material: Metal
● Specific Fitting Shape: Union
● Basic Fitting Shape: Union
● Seat Material Brass
Product Parameter (Specification)
No. | Part | Material |
1 | Bolts | Zinc Coated Steel |
2 | Nuts | Zinc Coated Steel |
3 | Flange | Cast Iron W/Galvanized |
4 | Gasket | EPDM |
5 | Flange | Cast Iron W/Galvanized |
6 | Insulator | Plastic |
7 | Solder connection | Lead Free Brass |
Item No. | Size | A | B |
CLFU015-1 | 2-1/2" | 1.62 | 1.02 |
CLFU015-2 | 3" | 1.89 | 1.26 |
Products Details
Production Procedure
Factory Review
Our factory covers about 15000sqm, which the floor space is about 10000sqm. We have have hundreds of employees, including 16 managers and engineers. Our fixed assets valued about RMB15000000.
The factory is specialized in producing a variety of high intensity particular fasteners. It mainly produces Dielectric Pipe Unions, pipe clamps and non-standard, irregular high intensity particular bolts and nuts.
Our Tenet: market-oriented, Quality is the life, integrity and development.
Our Principle: Strength makes famous brand and quality wins high credit.
To do business with integrity, To achieve the best results.
Deliver, Shipping and Serving
● Packing Details: Packets or Cartons or follow customer requirements.
● Delivery Details: Normally 30 days after receiving the deposite. Fast delivery requirements is acceptable.
● Shippment: usually by sea from Ningbo/Shanghai port, if customer is in urgent need of the good, we can also deliver by air or by express like DHL, UPS Fedex etc.
FAQ
Q1: What's your payment term?
A: 30% T/T in deposit, the rest against on the copy of B/L.
Q2: Where is your company?
A: We are located in Taizhou, Zhejiang Province, very convenient for shipping.
Q3: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q4: What are your main products?
A: Dielectric union and rock bolt accessories, like spherical nut, hex nut, spherical washer etc
Q5: Can you do the design for us?
A: Yes. We have a professional team having rich experience on products designs and package design. Just tell us your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
